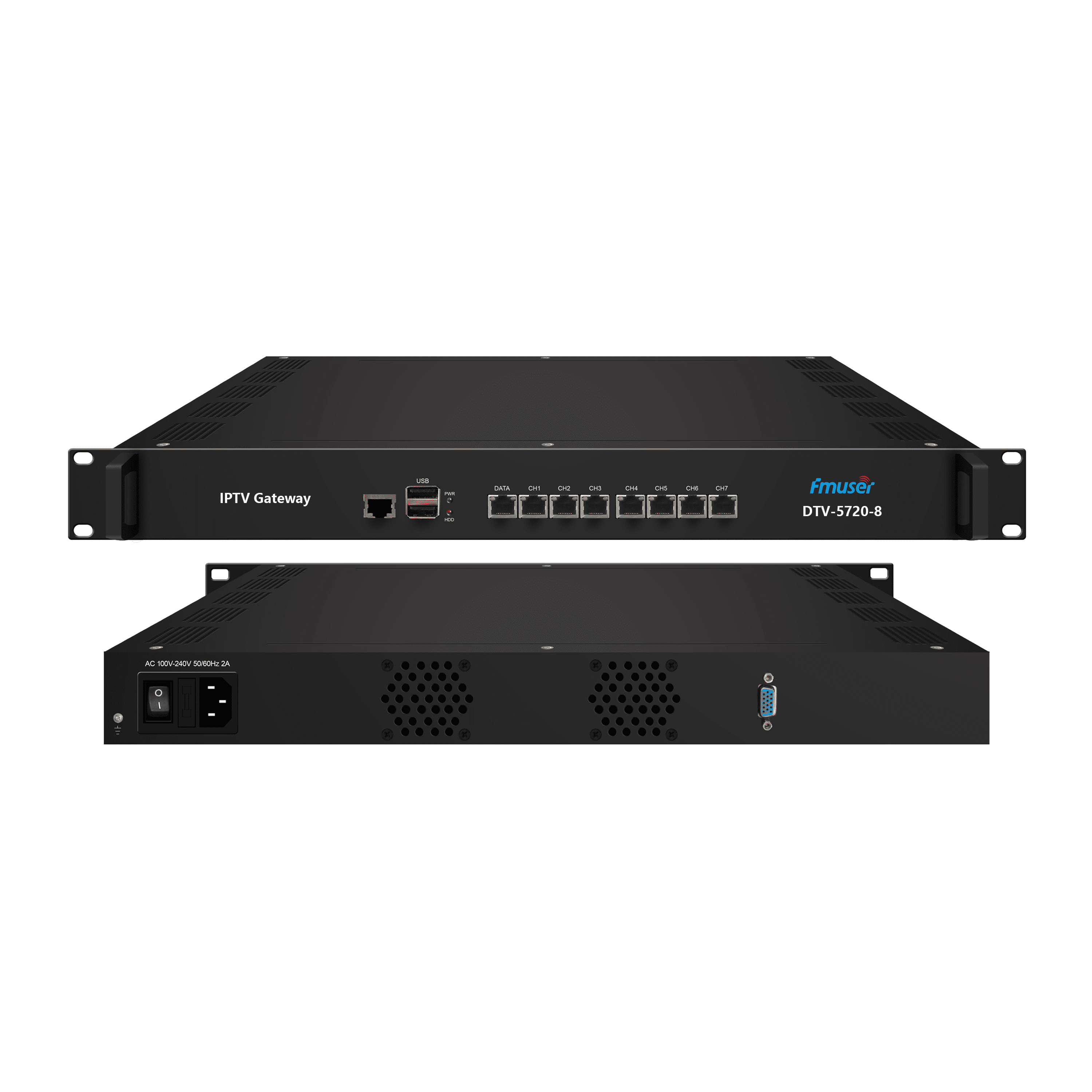

FMUSER DTV-5720-8 7 IP(UDP/RTP/SPTS/RTSP) in 1 IP(HTTP/UDP/HLS/RTMP) out IPTV Gateway Server
1.8 data ports, with the first data port supporting IP out over HTTP, UDP (SPTS), HLS, and RTMP.
2.Data CH1-7 ports support IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP, and HLS, with IP out over HTTP, HLS, and RTMP (Unicast)
3.Supports adding scrolling caption, welcome words, boot image, and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed FMUSER Hotel IPTV APK). The device also supports downloading FMUSER Hotel IPTV APK directly from this device.
4.Support about 80 HD/SD programs (Bitrate: 2Mbps) when HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), but the actual application shall prevail, and suggest maximum 80% CPU utilization
5.Supports program playing with APK downloaded android STB and TV, with a maximum of 300 terminals.
Details:
FMUSER DTV-5720-8 7 IP(UDP/RTP/SPTS/RTSP) in 1 IP(HTTP/UDP/HLS/RTMP) out IPTV Gateway Server
Overview:
FMUSER DTV-5720-8 IPTV Gateway is a versatile device used for protocol conversion and streaming media distribution scenarios. It is capable of converting broadcast network IP streams over HTTP; UDP; RTP; RTSP; and HLS and TS files into HTTP; UDP; HLS; and RTMP protocols. This system can achieve integration by receiving a variety of commercial streaming media services and can also provide streaming media services directly.
FMUSER DTV-5720-8 IPTV Gateway is a flexible and easy-to-use device that can be used in various applications. It supports a wide range of protocols and file formats; making it easy to integrate into existing systems. The system can be used to distribute streaming media content over a local network; the internet; or both; allowing users to access the content from anywhere. The system also supports multiple languages and can be used in a variety of settings; including hotels; hospitals; schools; and corporate environments.
Features:
FMUSER DTV-5720-8 has 8 data ports; with the first data port supporting IP out over HTTP; UDP (SPTS); HLS; and RTMP.
The Data CH1-7 ports support IP in over HTTP; UDP (SPTS); RTP (SPTS); RTSP; and HLS; with IP out over HTTP; HLS; and RTMP (Unicast).Supports TS files uploading through web management and IP anti-jitter function.
Supports adding scrolling caption; welcome words; boot image; and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed FMUSER Hotel IPTV APK).
The device also supports downloading FMUSER Hotel IPTV APK directly from this device.Support about 80 HD/SD programs (Bitrate: 2Mbps) when HTTP/RTP/RTSP/HLS is converted into UDP (Multicast); but the actual application shall prevail; and suggest maximum 80% CPU utilization.
Supports program playing with APK downloaded android STB and TV; with a maximum of 300 terminals.
Controlled via web-based NMS management through DATA port.
IP Protocol Conversion:

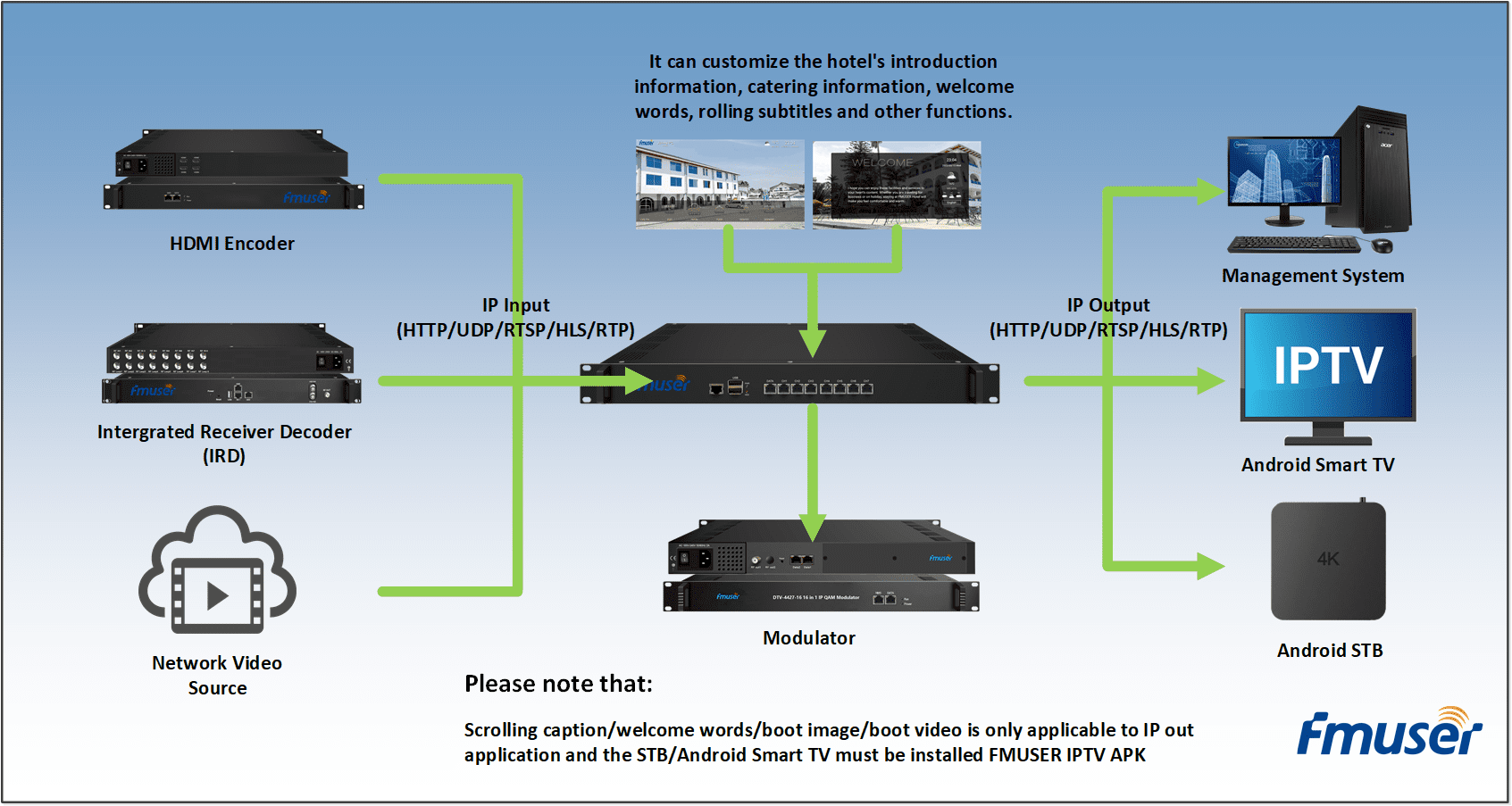

Principle Chart:
Specification:
Input | IP input thru CH 1-7(1000M) over HTTP; UDP(SPTS); RTP(SPTS); RTSP (over | ||
TS files uploading through Web management | |||
IP output | IP out thru Data port (1000M) over HTTP (Unicast); UDP(SPTS; Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding) | ||
System | CPU: DTV-5720-8(1037) | Memory: 4G | |
Solid-State Disk:16G (60G optional) | |||
Channel switching time with FMUSER’ STB: HTTP (1-3s); HLS (0.4-0.7s) | |||
Support adding scrolling caption; welcome words; boot image and boot video | |||
Play programs with APK downloaded android STB and TV; maximum 300 | |||
Support about 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast); the actual application | |||
web-based NMS management thru DATA port | |||
General | Demission | 482mm×324mm×44mm (WxLxH) | |
Temperature | 0~45℃(operation); -20~80℃(storage) | ||
Power Supply | AC 100V±10%; 50/60Hz or AC 220V±10%; 50/60Hz | ||

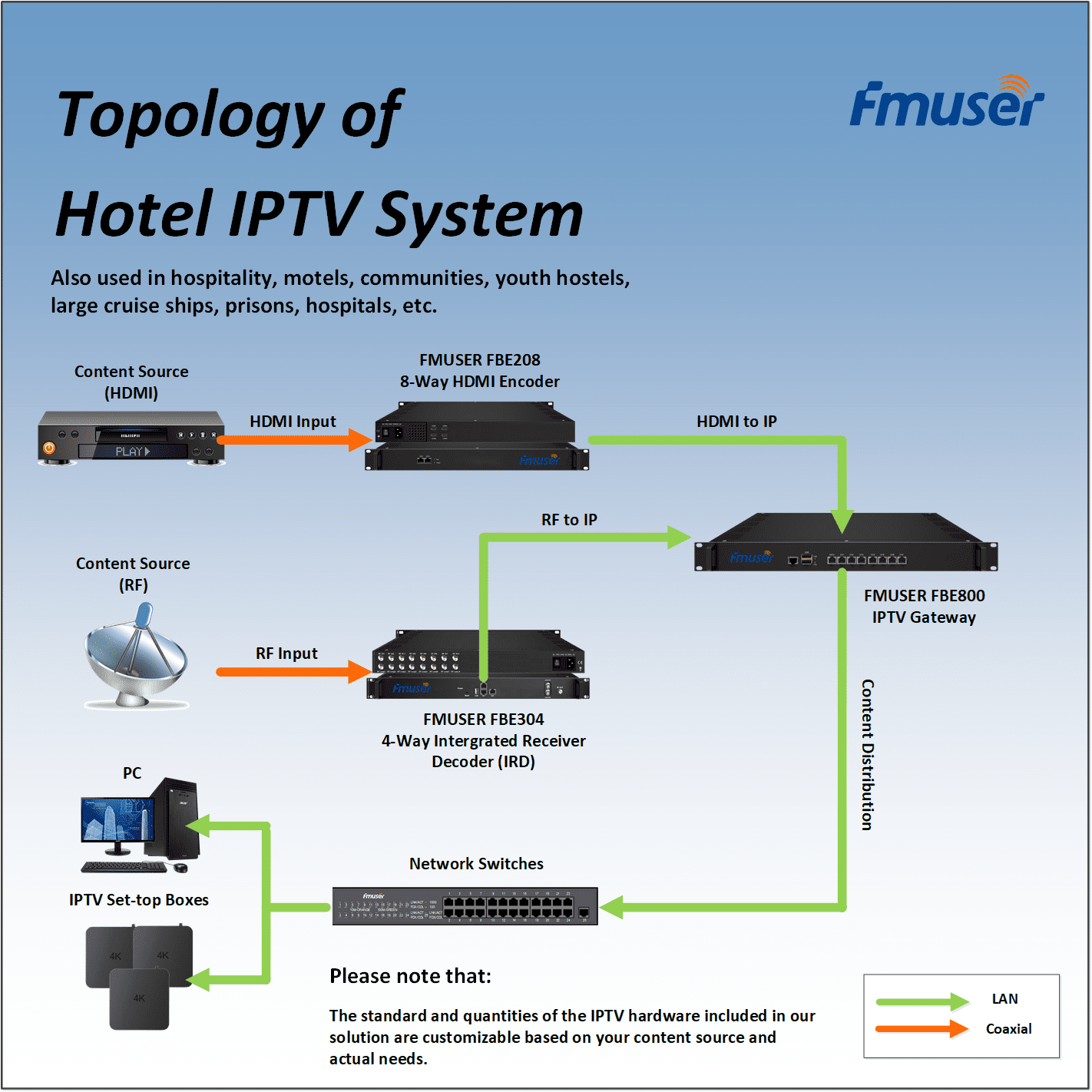

Application:
Maximum 250 Terminals solution
Head-end devices:
Data Source | Function | Mark |
DTV-4619B Tuner to IP | Receiving FTA Programs | Input: 16 tuner; 2ASI |
DTV-4696 4 in 1 IRD | Decrypting programs | Input:4 RF; 1ASI; 4IP |
DTV-4335V H.265/H.264 | HD Programs | Input: 4/8/12×HD/SDI |
DTV-4619F IPTV Gateway | Converting protocol | Input: 7 channels IP over UDP |
Receiving devices:
Data Source | Function | Mark |
DTV-5720-8 IPTV Gateway | As a receiver to receive programs from public Network | Input IP protocol: HTTP Output IP protocol: UDP |
DTV-5720-8 IPTV Gateway | As a server | Input IP protocol: UDP |
Head-end device | Device | Number |
DTV-4619B Tuner to IP Gateway | 1 | |
DTV-4696 4 in 1 IRD | 1 | |
DTV-4335V HEVC/H.265 HD Encoder | 1 | |
DTV-5720-8 IPTV Gateway | 1 | |
Receiving device | DTV-5720-8 IPTV Gateway | 2 |
Terminal device | STB with APK/TVs with APK | maximum 250 |
Terminal Type | Mark |
STB with APK | Support HTTP&HLS protocol |
TVs with APK | Support HTTP&HLS protocol Support FMUSER APK configuration |
Terminal devices:
A small number of programs and terminals solution
Head-end devices:
Data Source | Function | Mark |
DTV-4619B Tuner to IP Gateway | Receiving FTA Programs | Input: 16 tuner; 2ASI |
DTV-4696 4 in 1 IRD | Decrypting programs | Input:4 RF; 1ASI; 4IP |
DTV-4335V H.265/H.264 HD | HD HD Programs | Input: 4/8/12×HD/SDI |
DTV-5720-8 IPTV Gateway | Converting protocol | Input: 7 channels IP over UDP |
Receiving devices:
Data Source | Function | Mark |
DTV-5720-8 IPTV Gateway | As a receiver and a server; please view the following data for reference. | Input IP protocol: HTTP Output IP protocol: HTTP/HLS |
Terminal devices:
| Terminal Type | Mark |
STB with APK | Support HTTP&HLS protocol |
TVs with APK | Support HTTP&HLS protocol Support FMUSER APK configuration |
Total device number:
Head-end device | Device | Number |
DTV-4619B Tuner to IP Gateway | 1 | |
DTV-4696 4 in 1 IRD | 1 | |
DTV-4335V HEVC/H.265 HD Encoder | 1 | |
DTV-5720-8 IPTV Gateway | 1 | |
Receiving device | DTV-5720-8 IPTV Gateway | 1 |
Terminal device | STB with APK/ TV with APK | According to DTV-5720-8’s CPU utilization |
The number of terminals according to the cloud server
Head-end devices:
| Data Source | Function | Mark |
DTV-4619B Tuner to IP | Receiving FTA | Input: 16 tuner; 2ASI |
DTV-4696 4 in 1 IRD | Decrypting programs | Input:4 RF; 1ASI; 4IP |
DTV-4335V H.265/H.264 HD | HD HD Programs | Input: 4/8/12×HD/SDI |
DTV-5720-8 IPTV Gateway | Converting protocol | Input: 7 channels IP over UDP |
Receiving devices:
| Data Source | Function | Mark |
Cloud Server | Receiving and store programs and as a server | Input IP protocol: HTTP/HLS Output IP protocol: HTTP/HLS |
Terminal devices:
| Terminal Type | Mark |
Android STB with APK | Support HTTP&HLS protocol |
Android TV with APK | Support HTTP&HLS protocol Support FMUSER APK configuration |
Mobile Phone or Tablet PC | Installing FMUSER OTT APP |
Total device number:
Head-end device | Device | Number |
DTV-4619B Tuner to IP Gateway | 1 | |
DTV-4696 4 in 1 IRD | 1 | |
DTV-4335V HEVC/H.265 HD Encoder | 1 | |
DTV-5720-8 IPTV Gateway | 1 | |
Receiving device | Cloud Server | 1 |
Terminal device | STB with APK/ TV with APK/ | The number of terminals according to |
